1984 Jeep CJ7, TBI 350, locked D44s, 37s
Posted
$12,000
Phoenix, AZ
Overview
Year, Make, Model
1984 Jeep CJ7
Link
https://phoenix.craigslist.org/nph/cto/d/phoenix-1984-cj7-chevy-scout-rock/7125404395.htmlPosted
Engine
Engine
Chevy V8
Fueling
Gas, TBI
Drivetrain
Transmission
700R4, built
Transfer Case
NP241, slip yoke eliminator
Front Axle
1978 Scout Dana 44, 4.56, Yukon Grizzly Locker
Rear Axle
1978 Scout Dana 44, 4.56, Yukon Grizzly Locker
Suspension and Steering
Suspension
spring over
Steering
Custom heim joint
Tires and Wheels
Tires
37" BFG KM2, 80% tread
Misc
Winch
Warn 15000lb

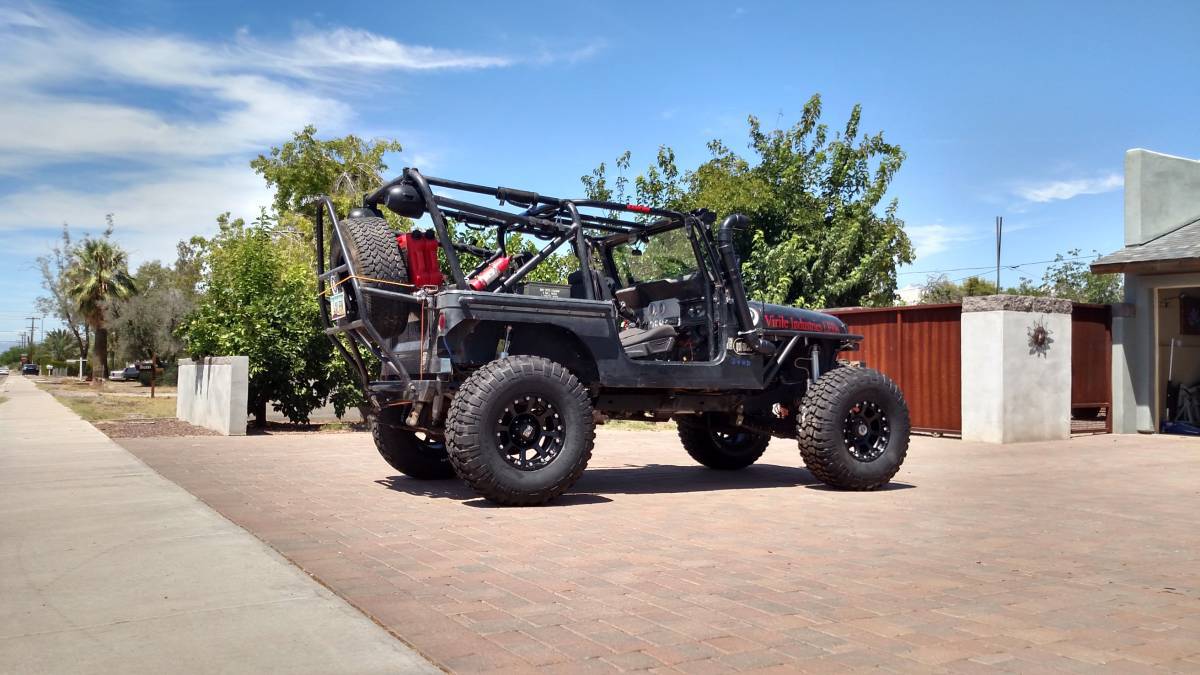

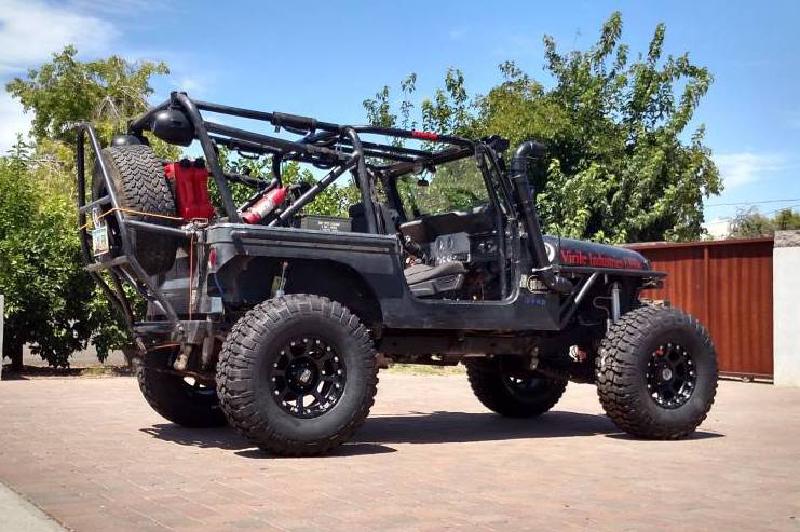

Started as a 1984 CJ7
Complete 1990 Chevrolet 2500 Drivetrain and Scott II Axels on 37” KM2s. 350 Small Block, 700r4 Trans, NP241 T-case with SYE. Locked Front and Rear on 44s, 4:56 Gears. SBC 350 coupled with the ultra-low gearing of the 700r4 trans and 4:56 gears make low range incredibly low. Large 37” BFG Mud Terrain tires with the 700r4 overdrive makes for great highway driving. The Scout II axels are wider than CJ wide track and raked 14” (6” rear and 8” front) making this rig stable over any terrain. Great all-around wheeler that does 80mph on the highway and can out crawl some purpose-built crawlers. This is not a road queen and does not have AC. This is not a linked and coiled setup with king or fox shocks, but it will out crawl most of them. This was a lot of fun to design, build, and use. I have moved to diesel truck projects for off road and need to make room for a Mustang/Duramax build and a Suburban/Duramax build for the wife. Unfortunately, that means this must go…eventually. If you’ve ever bought or built a rock crawler, you know there is value in the details. You also know that you will never recover what you put in it. I based the price on being somewhere between. You can’t build this for what I’m asking. You may be able to find something like it cheaper but make sure you look closely before buying.
Drivetrain

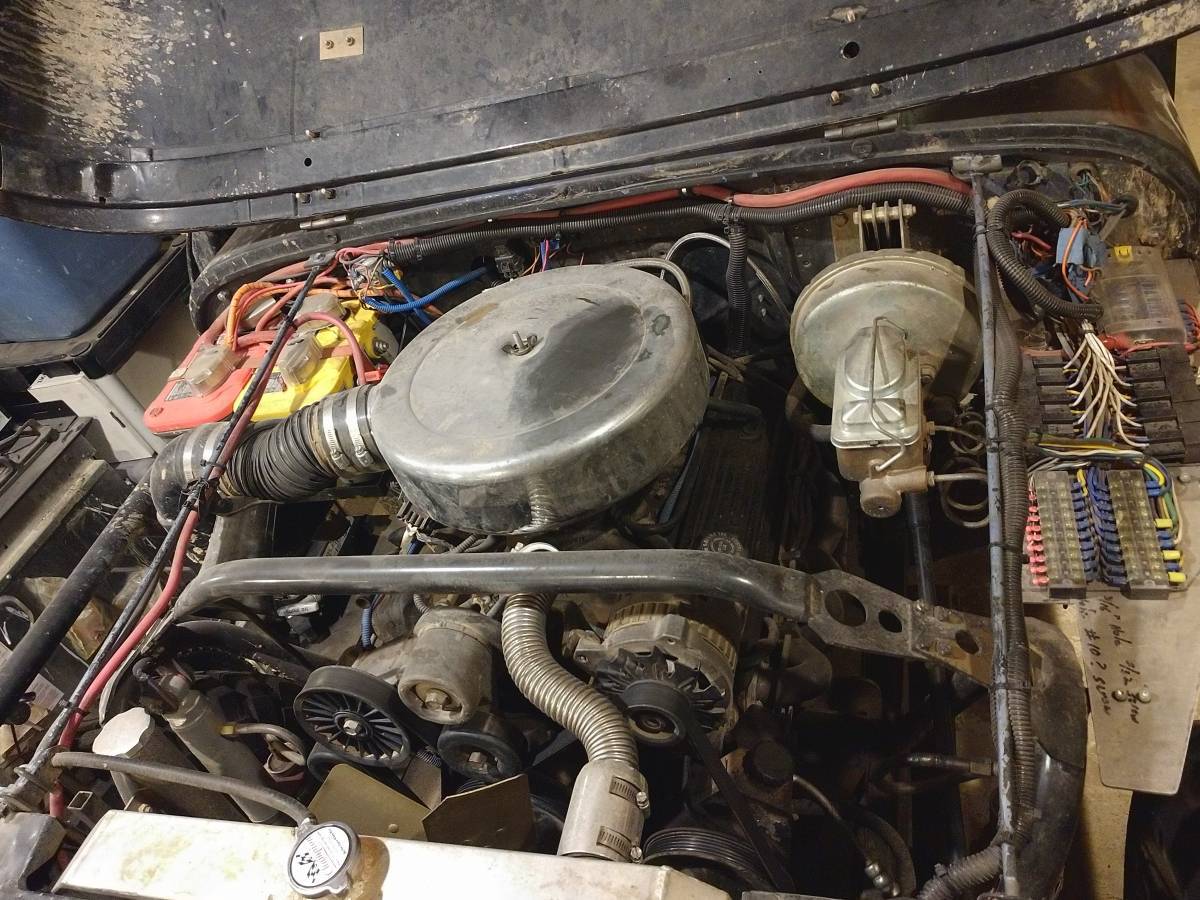

- 5.7L 350 SBC TBI with Snorkel, Electric and Mechanical Fans, Custom Radiator, Headers
- 700r4 Built Transmission (Trans, Tranny) with 2400 Stall B&M Truck Mega Shifter
- NP241 Passenger Drop Transfer Case (Tcase, T-Case) with SYE (Slip Yoke Eliminator)
- Custom Build Heavy Duty Driveshafts by Phoenix Rack and Axel
- Long Front Driveshaft with Midship Pillow-block Carrier
- Short Rear Driveshaft with CV (Double Cardan Style)
Axels
- Dana 44 Front and Rear out of 1978 Scout II Traveller
- New Bearings and Seals
- Sealed Front Tube Kit
- Front Disc, Rear Drum (power)
- Braided Front Brake Lines Dropping at Center for Limited Movement
- Locked Front and Rear w. Yukon Grizzly Lockers
- 4:56 Gears
- 37” BFG KM2 Mud Terrain (80% plus tread)
Frame and Body
- MORE Frame Plates Stitch Welded
- MORE Bomb Proof Motor Mounts
- Custom Tube Fenders
- Custom Tube Rear Armor

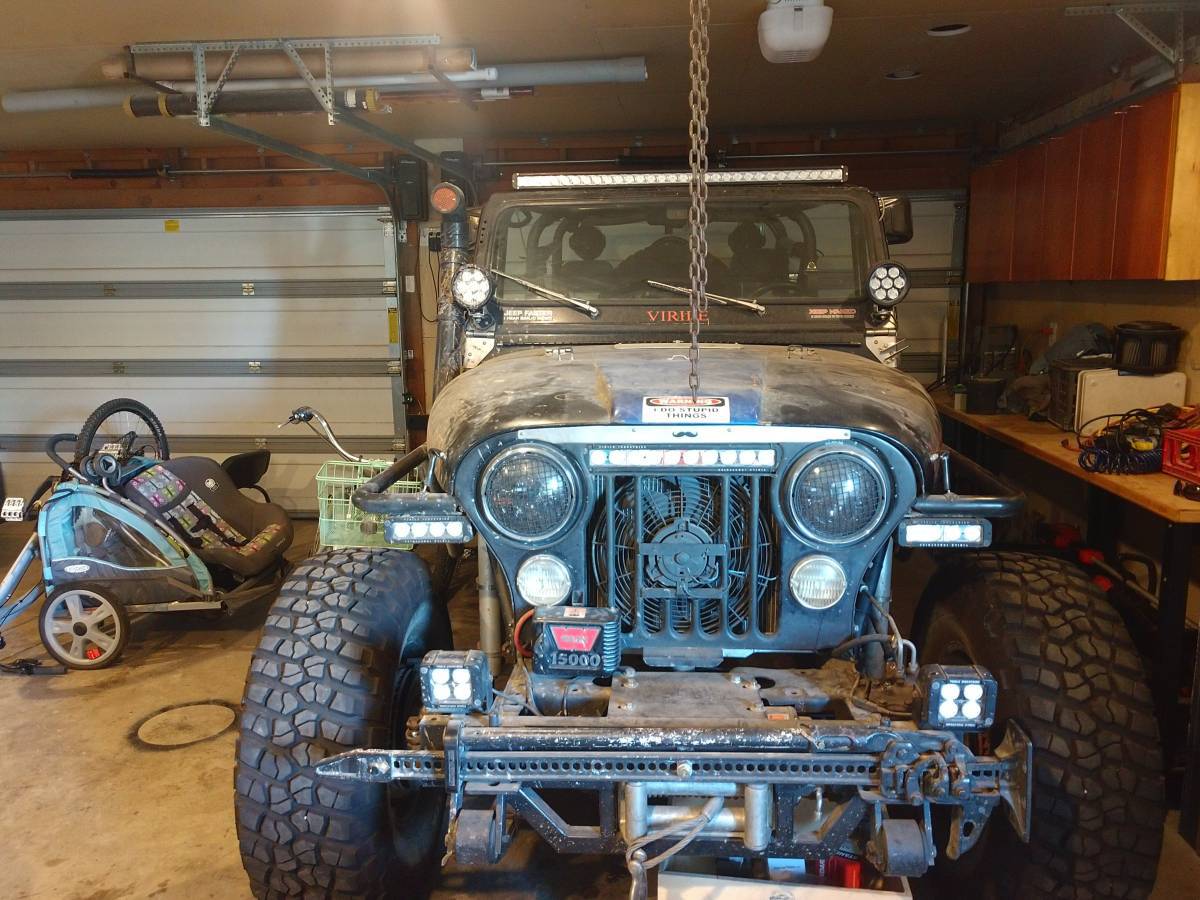

- Custom Front Bumper
- Modified Spyder Rear Drop Down Tire Carrier and Bumper

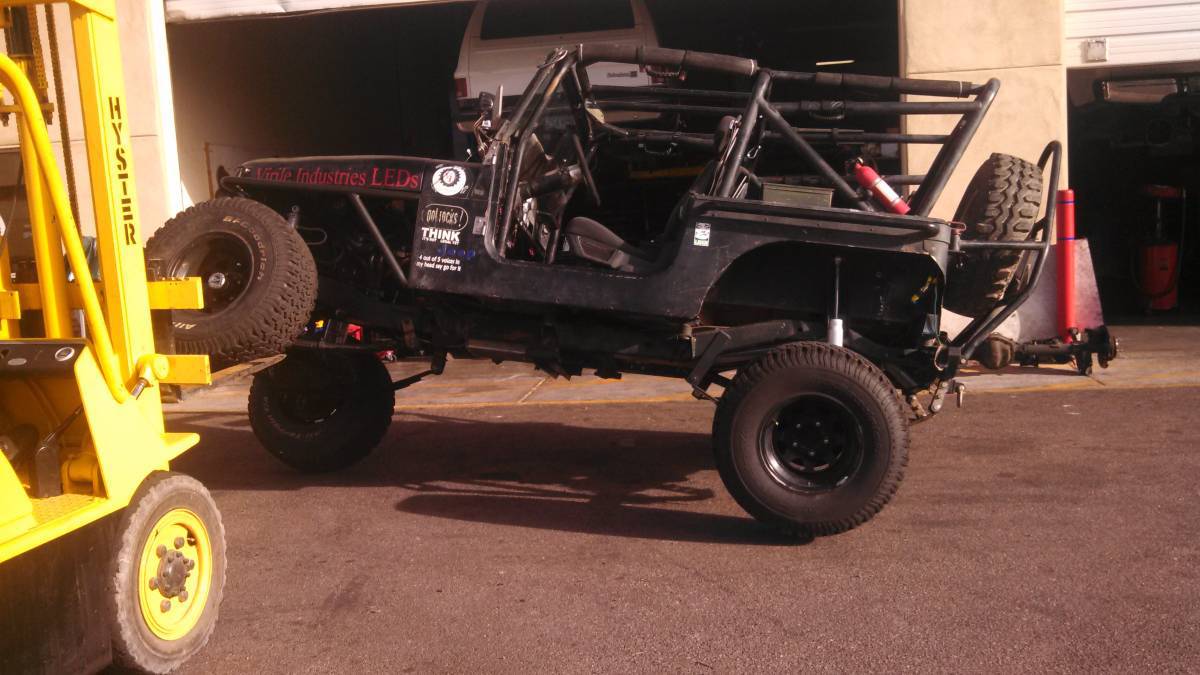

- Custom Fabricated and Modified CJ7 Roll Cage(s)

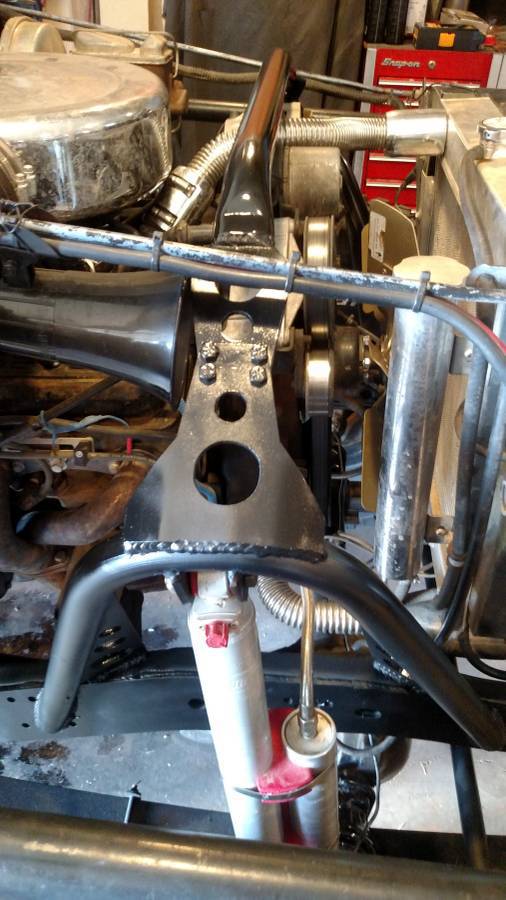

- Custom Fabricated Engine Cage/Shock Mount/Frame Brace
Steering and Suspension

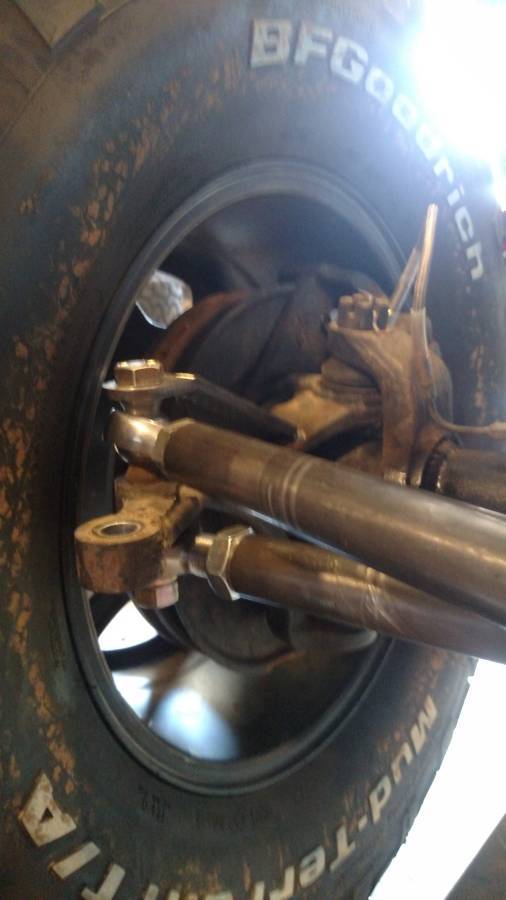

- Custom Heim Joint Tie Rod and Drag Link
- Custom Track Bar
- Custom Long Leaf Springs and Shackles (Valley Spring Service)
- Outboarded Front Springs, SPRUNG UNDER, with MOPAR Style Offset Shackles
- Rancho 9000 Shocks (Front Reservoir Shocks
Electronics
- Howell Wiring Harness
- ECM Under Passenger Dash in Pelican Waterproof Box

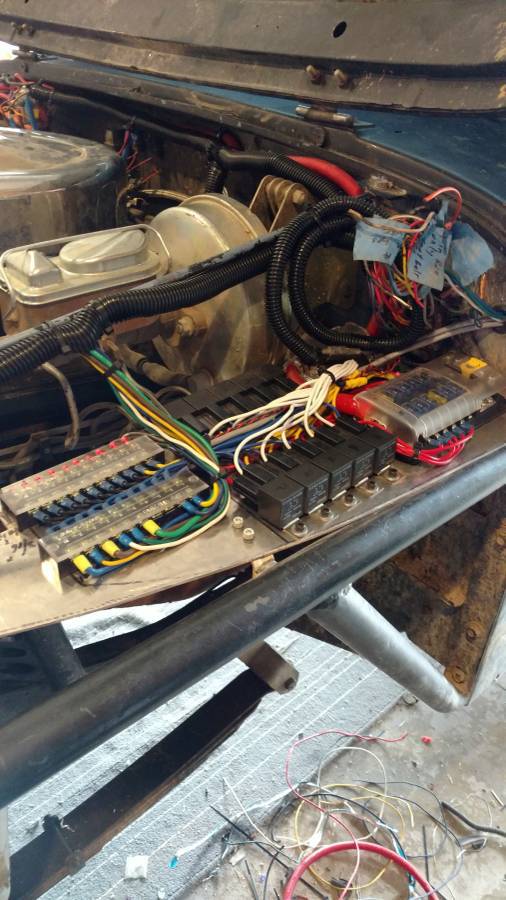

- Custom Accessory Wiring and Fuse Panel (All Run on Relays)

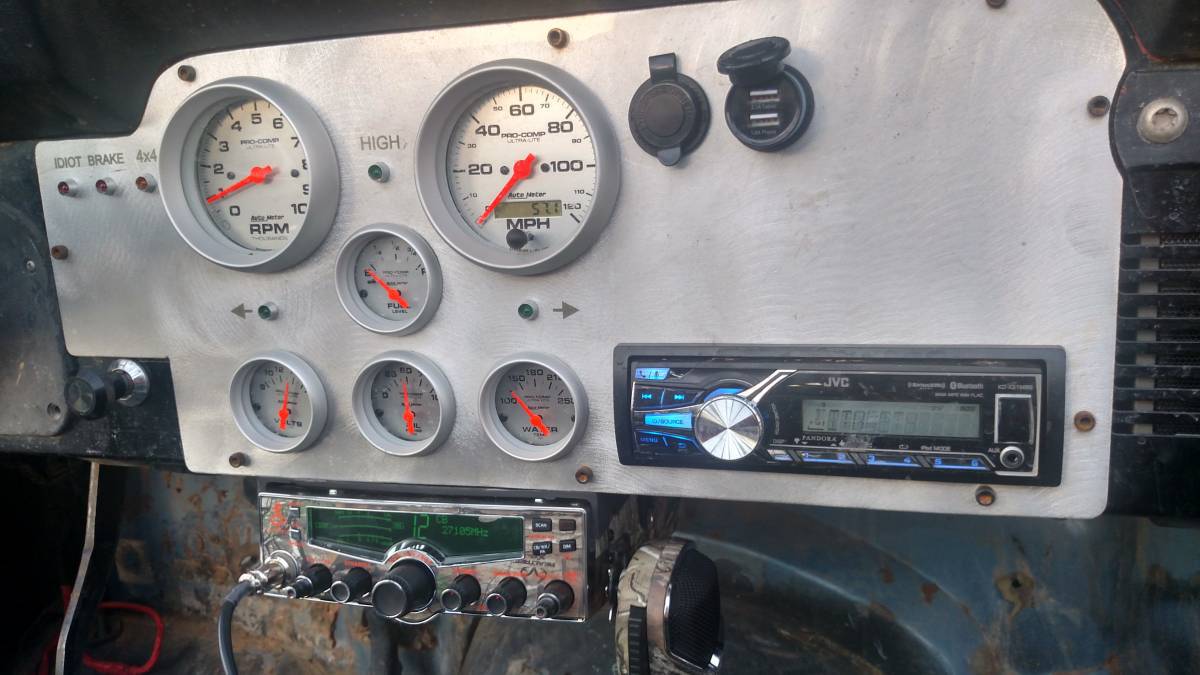

- Custom Aluminum Dash
- Autometer Gauges
- USB Charging Plugs
- 12VDC Cigarette Lighter Plug
- LED Idiot, Brake, 4x4 Indicator Lights and Laser Engraved Labels
- Custom Aluminum Switch Panel w/ Circuit Interrupt Breakers
- Electric Cooling Fan
- Dual Optima Batteries
- Warn 15000HD Winch
- LED Headlight Assemblies
- Virile Industries Light Bars (Relay Switched and Wired)
- 50” Above Windshield (300 watt 25,800 lumen)
- 2x 6” Rounds at Windshield Lower Corners (70 watt each, 5000 lumen each)
- 18” Below Hood Above Radiator (100 watt 8600 lumen)
- 2x 8” Below Front Fender (40 watt each, 3440 lumen each)
- 2x 5” Square on Front Bumper (40 watt each, 3440 lumen each)
- JVC Head Unit, Kenwood 6x9 Behind Seats, 6” Wakeboard Cage Pods
- Cobra CB Camo Custom Peak Tuned, Sprung FireStick Whip, PA Loudspeaker, External Speaker
MISC
- Racing Fuel Cell Behind Rear Seat, Racing Fuel Pump, Braided Lines and AN Fittings
- Tuffy Secuirty Console with Cup Holders
- Tuffy Glove Box
- Bestop Rear Seat
- Custom Front Seats (Town and Country Minivan Seats with Sliders on Factory CJ7 Flip Mounts)
- Slides, Flips, Collapses, with Captains Arms, and Integrated Seatbelt Receivers
- Foot Pegs
- Grab Bars
- Dual Cage Mounted Fire Extinguishers
- 50 Caliber Ammo Cans Mounted on Rear Fenders for Storage
- Custom Removable Racing Steering Wheel (Can’t Steal What You Can’t Steer)
- Adjustable Roll Cage Mounted Rearview, Passenger and Driver Side Mirrors
Extras
- Extra Hood
- Factory Gauges and Switches
- Soft Doors
- Foot Pegs
- Comes With Bottle Opener
