2014 Rockbuggy, Propane Toy 22R, Dual Toy Cases, D60/14B, 3 link/4 link
Posted
$13,000
Newberg, OR
Overview
Year, Make, Model
2014 Custom 3 seater
Link
https://portland.craigslist.org/wsc/cto/d/newberg-rock-buggy-rock-crawler/7131646134.htmlPosted
Engine
Engine
Toyota 22R
Fueling
Propane
Drivetrain
Transmission
manual, 5 speed, Toyota L52
Transfer Case
Marlin Dual Cases, 4.7:1, 30 spline input/output shafts
Front Axle
Dana 60, 5.13, welded diff, 35 spline inner/outer shafts
Rear Axle
14 bolt, 5.13, spool, 15" disc brakes
Suspension and Steering
Front Suspension
3 link, 2.5" 18" ADS Hybrid Coilovers
Rear Suspension
4 link, 2.0" 18" Ballistic Fab Hybrid Coilovers
Steering
PSC full hydro kit w/double ended ram, Artech high steer arms
Tires and Wheels
Tires
41.5"x13.50"R15 Pitbull Rockers, 95% tread
Wheels
Beadlocks
Misc
Winch
yes

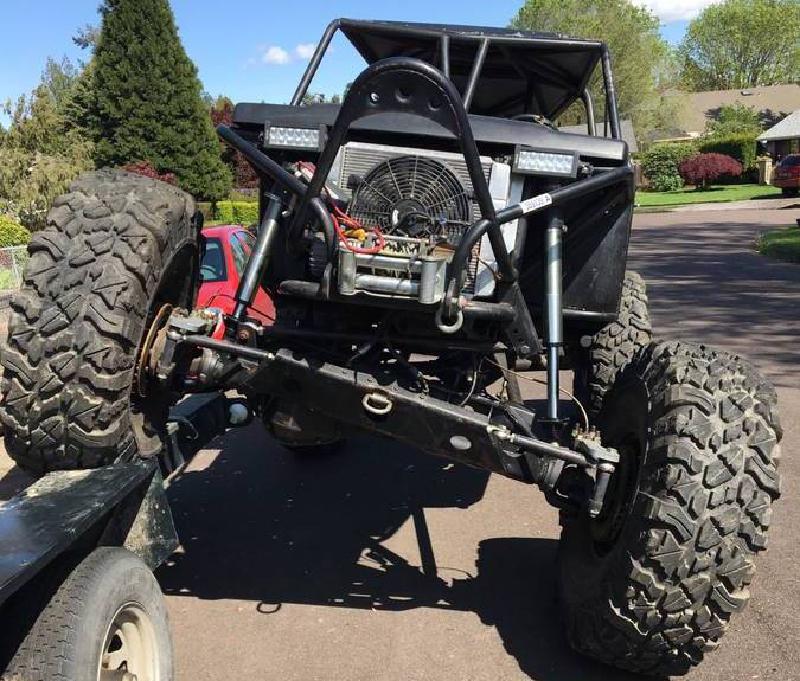

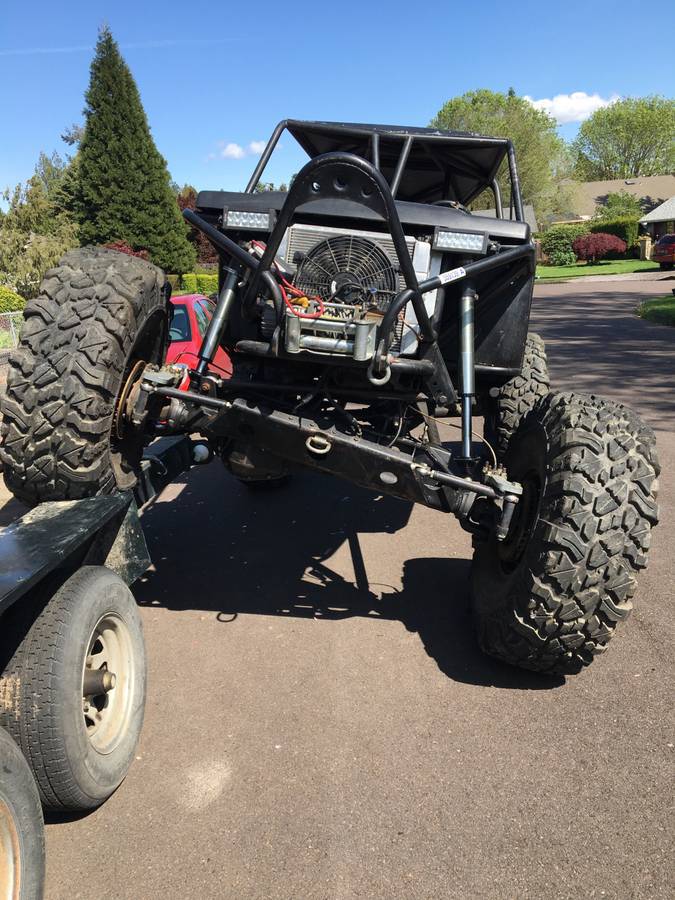

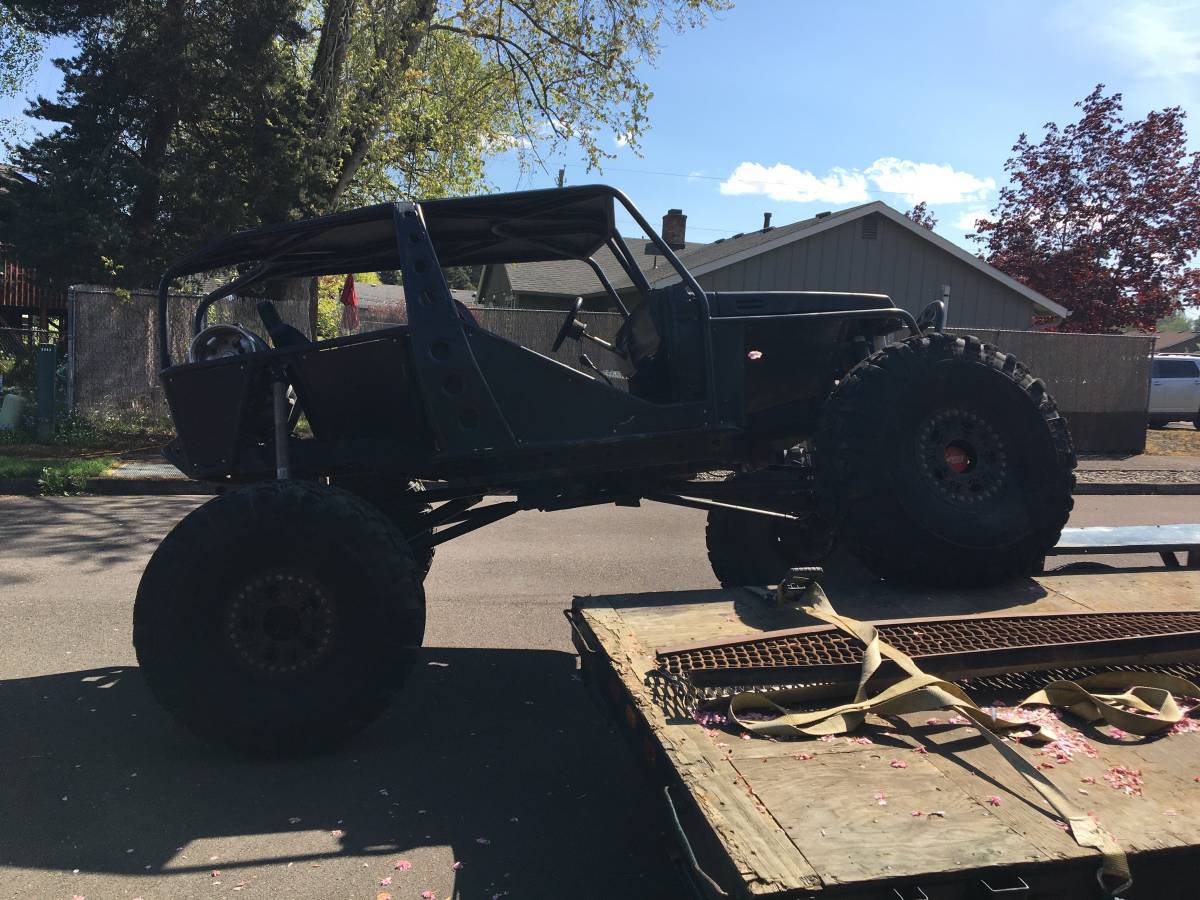

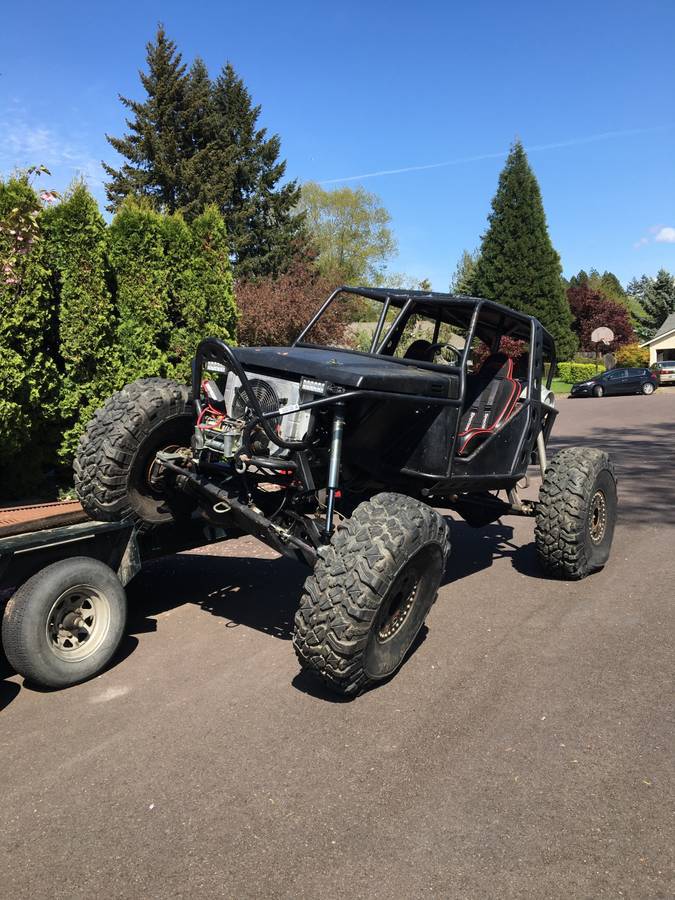

Rock buggy rock crawler
- Samurai style buggy
- Boxed and reinforced samurai frame
- Full 1 1⁄2 DOM cage tied into the frame in about 12 locations
- Toyota 22r on propane brand new installing this weekend
- L52 tranny
- Dual cases marlin crawler comp cut 4.7 kit 30 spline chromolly input and output shafts
- Dana 60 front 513’s welder Yukon 35 spline chromolly inner and outer shafts spicer joints rpm off road drive flanges
- Ruff stuff diff cover atech trusses top and ram mount artech hi steer arms with dual sheer 15” break kit
14 bolt rear 513’s spool 15” disk brake kit Ruff stuff diff cover and pinion guard
Full PSC hydro kit dual ended ram
- 3 linked front 4 linked rear
- 2.5 18” ADS HYBRID coilovers
- 2.0 18” ballistics fab hybrid coilovers
41.5x13.50R15 pitbull rockers 95% tread, On beadlocks
PRP RACING SEATS ONR YOUTH SEAT IN BACK SPARCO HARNESSES
